Saturday, November 29, 2008


These are the plans for the future of Matrex, in order of time:
  1. Upgrade all adapters to libraries, script languages and scientific applications to work with the version 1.3.x of Matrex, which uses a new plugins architecture. I already upgraded the Jama adapter and I'm working on the JRuby adapter. Clearly if there are new versions of the libraries, languages and applications the adapters will work with them.
  2. New adapter to the Groovy interpreter.
  3. New intermediate version of Matrex, probably called 1.3.5. This version will not contain major changes from version 1.3. The idea is to make possible to have configuration files and additional templates in different directories. In this way it is possible to build .deb or .rpm setup packages for Matrex and make it easier to use under Vista and MacOSX.
  4. New version 2.0: It will be possible to use Matrex as a standalone application, like now, or as a client/server system.
The upgrade of the adapters and the Groovy adapter will be done in the next weeks.
Versions 1.3.5 will be probably finished in ~ 2/3 months.
2.0 will be finished in ~ 6 months.
Versions 1.3.5 and version 2.0 will be developed in parallel.

In the same time Braxton and me are trying to build a setup file to install Matrex on MacOSX as an application bundle.

Wednesday, November 26, 2008

Compatibility with Java5 : Matrex 1.3.01

I published a new release of Matrex, 1.3.01, to cope with the fact that Matrex 1.3 was able to run with Java6, but not with Java5.
The problem was a call to the String.isEmpty() method, which is only available from Java6.
In 1.3.01 this call has been replaced and this version has been tested with Java5.

Thanks to Braxton who found the problem.

Wednesday, November 12, 2008

Matrex 1.3 relased

So we finally made it. Version 1.3 has been released!

A summary of the changes from version 1.2 is available in the Sourceforge's release notes.
The big changes have been:
  • Main View usability improvement.
    The main view is now easier to use thanks to the buttons that hide and show specific trees (for example you can hide the function tree and show the presentation tree just clicking two buttons).

    It is also possible to search items or folders in a tree just typing a part of its name (in red).

    In each tree is not possible to move a set of items to a package.
    Just select some items of a tree (also in different packages), right-click with them mouse on the tree to display the popup menu and select Move... (for example Move Matrices). With a dialog box you choose the destination package and the items gets moved.
    The system takes care of the dependencies.

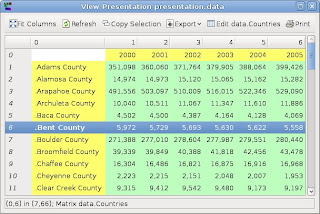

  • Viewers usability improvement . In the presentation viewer and matrix viewer it is now possible to display the content of presentations and matrices in the best way clicking the fit columns button.

  • Generic setup. The Matrex generic setup allows to install Matrex on every platform. The idea is that, once installed, when executed the first time, Matrex downloads the correct version of the SWT library and installs it.
    Executing it once again, the downloaded library is used and Matrex works regularly.
    All thanks to the SWT Web Installer library.

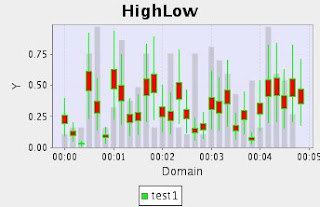

  • New high low charts. Added candle and high low charts.

  • Plug-in architecture. Matrex now uses its own class loader, which allows to specify libraries (e.g. function template libraries) that need to be loaded using the Plugin Dialog:

    No more class paths to change in the batch files!

  • Code quality improvement. The code is now well covered with JUnit tests and has been checked with Findbugs. The GUI has also been unit tested using SWTBot.
Also the experimental new feature of the callbacks has been added. It is used in the directsearch example project, which demonstrates the Nelder Mead optimization method.

As usual, feedback is precious. Please let me know if something is wrong!
